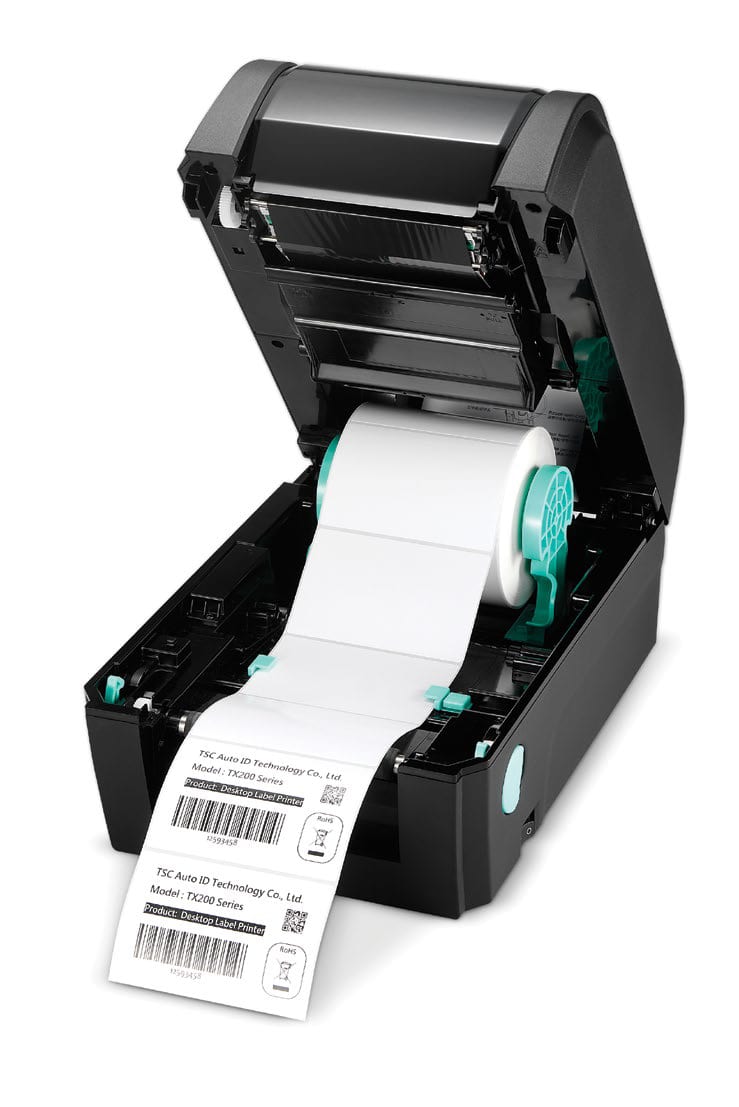

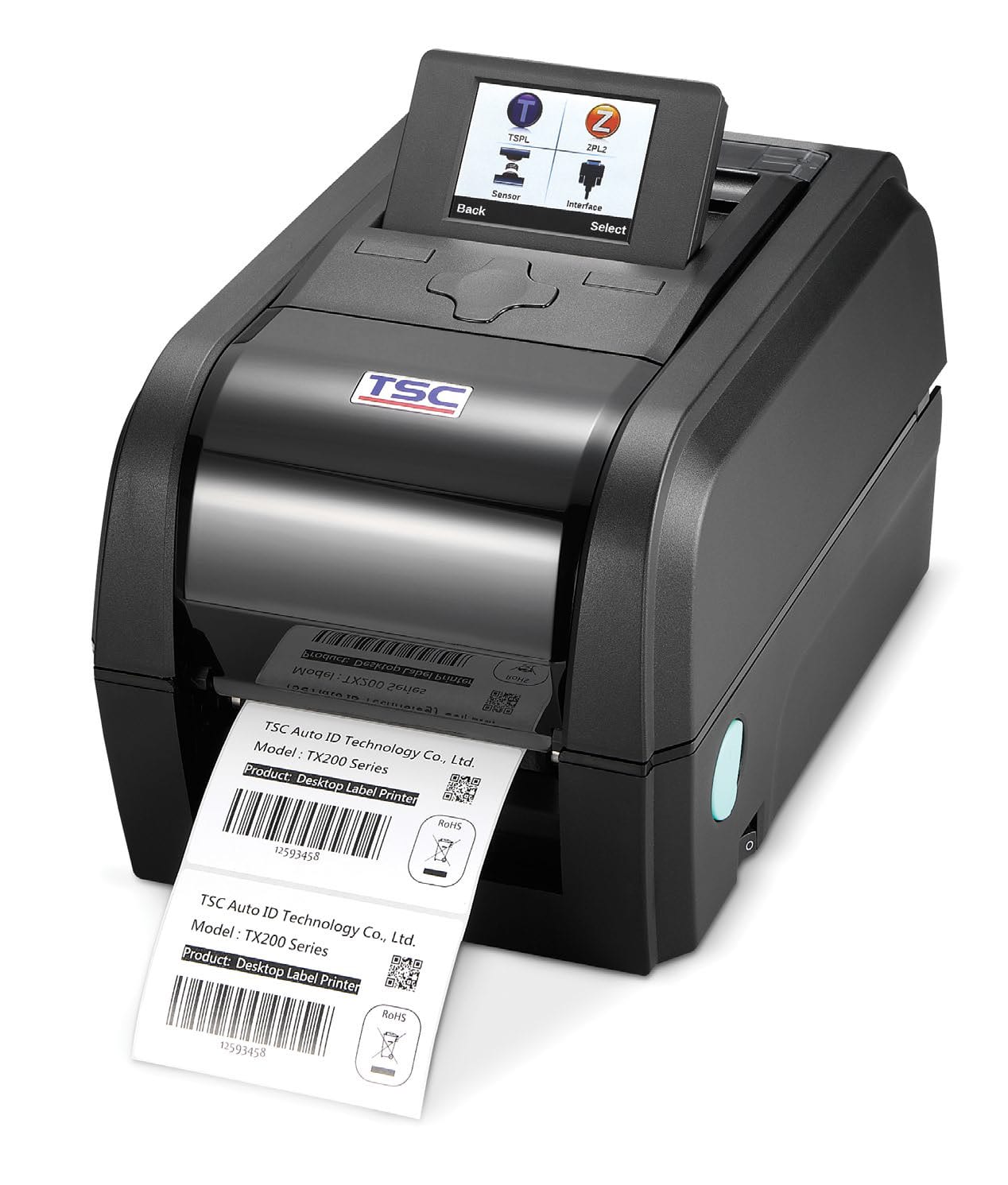

TSC TX300

Printer Specifications:

• Print Method: Thermal Transfer & Direct Thermal
• Resolution: 12 dots/mm (300 DPI)
• Max. Print Speed: 152 mm (6”)/second
• Max. Print Width: 106 mm (4.17“)
• Max. Print Length: 11,430 mm (450”)
• Processor: 32-bit RISC CPU
• Memory: 128 MB Flash memory / 128 MB SDRAM /microSD card reader for Flash memory expansion, up to 32 GB
• Sensors: Transmissive gap sensor / Black mark reflective sensor (position adjustable) / Ribbon encode sensor / Head open sensor
• Printer Language: TSPL-EZTM (Compatible to EPL, ZPL, ZPL II)

Media Specifications:

• Media Type: Continuous, die-cut, black mark, fan-fold, notch (outside wound)
• Media Width: 19 ~112 mm (0.75” ~ 4.4”)
• Media Thickness: 0.055 ~ 0.254 mm (2.17 ~ 10 mil)
• Media Core Diameter: 25.4 ~ 38.1 mm (1” ~ 1.5”)

Label Specification:

• Label Roll Capacity: 127 mm (5“) OD
• Label Length: 3 ~ 11,430 mm (0.1“ ~ 450“)

Ribbon Specification:

• Ribbon: 300 m long, max. OD 67 mm, 1“ core (ink coated outside)
• Ribbon Width: 40 mm ~ 110 mm (1.6” ~ 4.3”)

Internal Fonts:

• 8 alpha-numeric bitmap fonts
• Monotype Imaging® true type font engine with one CG Triumvirate Bold Con-densed scalable font

Barcodes:

• 1D bar code: Code 39, Code 93, Code128UCC, Code128 subsets A.B.C, Codabar, Interleaved 2 of 5, EAN 8, EAN 13, EAN 128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China post, ITF14, EAN14, Code 11, TELEPEN, TELEPENN, PLANET, Code 49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS
• 2D bar code: TLC39, CODABLOCK F mode, PDF-417, Maxicode, DataMatrix, QR code, Aztec, Micro PDF 417, GS1 DataBar (RSS barcode)

Font & Barcode Rotation:

• 0, 90, 180, 270 degree

Interface:

• USB 2.0
• RS-232
• Internal Ethernet, 10/100 Mbps
• USB Host
• Centronics (factory option)
• External Bluethooth (user option)
• Slot-in 802.11 a/b/g/n wireless (dealer option)

Operation Switch, Button, LED/LCD:

• 1 power switch
• 1 feed/pause button
• LED panel with 8 big icons

Power:

External universal switching power supply
• Input: AC 100-240V, 2.5A, 50-60Hz
• Output: DC 24V, 3.75A, 90W

Sensors:

• Transmissive gap sensor
• Black mark reflective sensor (position adjustable)
• Ribbon encode sensor
• Head open sensor

Real Time Clock:

• Factory Option

Environment Condition:

• Operation: 5 ~ 40°C, 25 ~ 85% non-condensing
• Storage: -40 ~ 60°C, 10 ~ 90% non-condensing

Safety Regulation:

• FCC Class B, CE Class B, RCM, UL, cUL, TÜV/Safety, CCC, BIS, EAC, ENERGY STAR®

Environmental Concern:

• Comply with RoHS, WEEE

Accessories:

• Windows labeling software CD disk
• Quick start guide
• USB cable
• Power cord
• External universal switching power supply

Physical Characteristics:

• Enclosure: Clamshell with double-walled plastic
• Width: 226mm / 8.90″
• Height: 198mm / 7.80″
• Depth: 332mm /13.07″
• Weight: 3.75 kg (8.27 lbs)

User Options:

• Bluetooth module (serial interface)
• External label roll mount
• KP-200 Plus keyboard display unit
• KU-007 Plus programmable smart keyboard

Factory Options:

• Centronics parallel interface
• Real time clock
• 3.5” color TFT display (includes real time clock)
• Ribbon end sensor

Dealer Options:

• Peel-off module
• Guillotine cutter (full cut)
• 802.11 a/b/g/n wireless module (slot-in)

• Healthcare
• Retail
• Manufacturing
• Transportation & Logistics
• Government
• Travel & Leisure

Optional Printer Extra’s:

Wifi Module – £192
Peel-off Module – £32
Guillotine Cutter – £179
KP-200 Standalone Keyboard – £154

Printheads:

203dpi – £150*
300dpi – £204*
600dpi – £513*

*All prices are the manufacturer’s list price excluding VAT. These are subject to change without notice due to exchange rate fluctuations.
Reseller discounts vary by brand. Refer to the latest TPS price list for your current reseller prices. All specifications shown are subject to change without notice.
