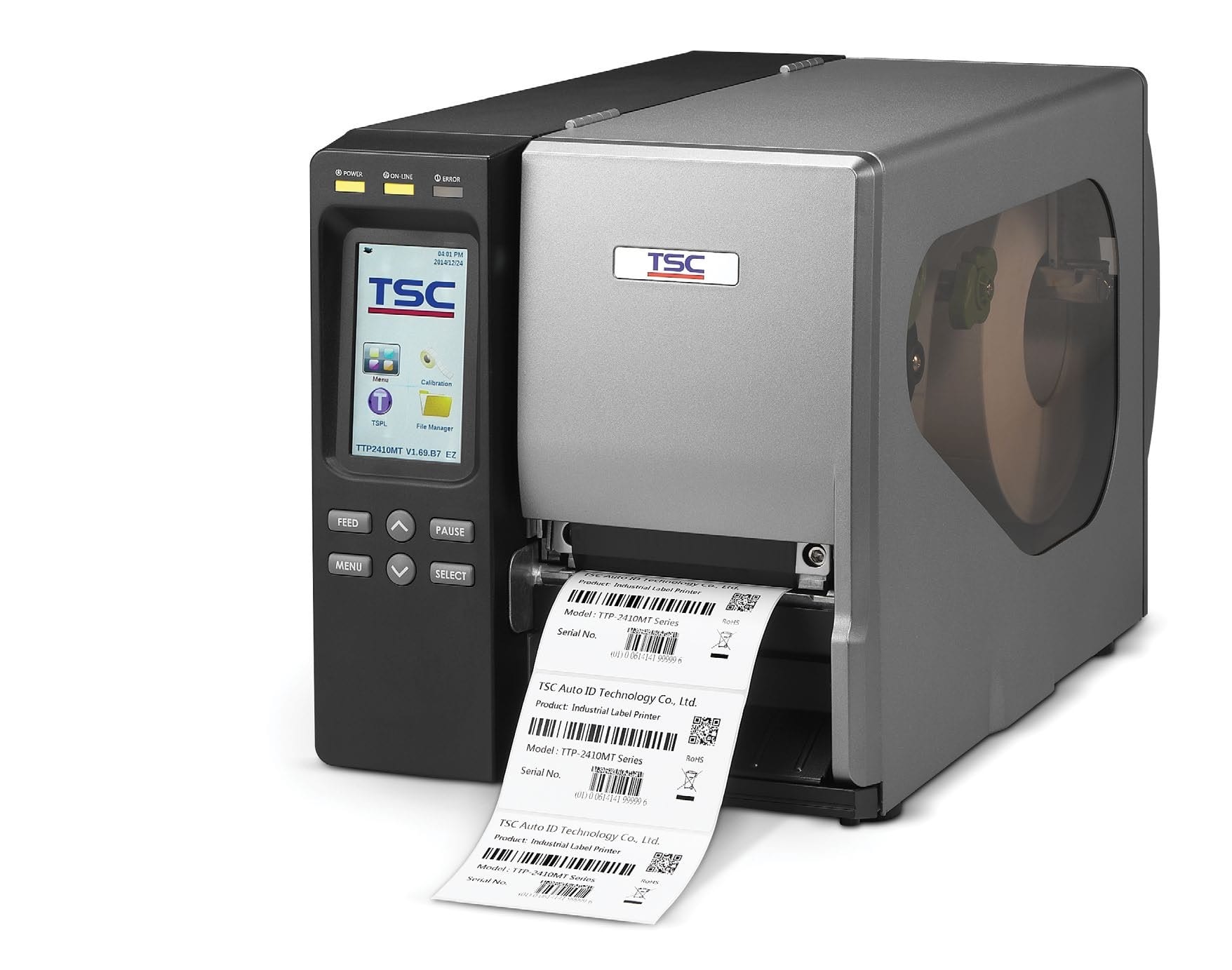

TSC TTP-644MT

Printer Specifications:

• Print Method: Thermal Transfer & Direct Thermal
• Resolution: 24 dots/mm (600 DPI)
• Max. Print Speed: 102 mm (4”)/second
• Max. Print Width: 104 mm (4.09“)
• Max. Print Length: 2,540 mm (100”)
• Processor: 32-bit RISC CPU
• Memory: 128 MB Flash memory (factory option 512 MB) Memory / 128 MB SDRAM (factory option 256 MB) / SD Flash memory card reader for Flash memory expansion, up to 32 GB
• Printer Language: TSPL-EZTM (Compatible to EPL, ZPL, ZPL II)

Media Specifications:

• Media Type: Continuous, die-cut, fan-fold, tag, notched, black mark, perforated, care label (outside wound)
• Media Width: 25.4 ~ 116 mm (1” ~ 4.5”)
• Media Thickness: Media thickness
• Media Core Diameter: 25.4 ~ 76.2 mm (1” ~ 3”)

Label Specification:

• Label Roll Capacity: 208.3 mm (8.2”) OD
• Label Length: 5 ~ 2,540 mm (0.20 ” ~ 100”)

Ribbon Specification:

• Ribbon: 600 m long, max. OD 90 mm, 1” core (ink coated outside or inside)
• Ribbon Width: 25.4 mm ~ 114.3 mm (1” ~ 4.5”)

Internal Fonts:

• 8 alpha-numeric bitmap fonts
• Monotype Imaging® true type font engine with one CG Triumvirate Bold Condensed scalable font

Barcodes:

• 1D barcode: Code 39, Code 93, Code 128UCC, Code 128 subsets A.B.C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST,
GS1 DataBar, Logmars
• 2D barcode: PDF-417, Maxicode, DataMatrix, QR code, Aztech

Font and barcode rotation:

• 0, 90, 180, 270 degree

Interface:

• RS-232
• Centronics
• USB 2.0
• Internal Ethernet, 10/100 Mbps
• USB host, for scanner or PC keyboard
• GPIO (factory option)
• Bluetooth (user option)
• Slot-in 802.11 a/b/g/n wireless (dealer option)

Operation Switch, Button, LED:

• 1 power switch, 6 operation buttons (Menu, Pause, Feed, Up, Down, Select) & 3 LEDs

Power:

Internal switching power supply Power
• Input: AC 100-240V, 2A, 50-60Hz
• Output: DC 24V, 5A, 120W

Sensors:

• Gap transmissive sensor (position adjustable)
• Black mark reflective sensor (position adjustable)
• Head open sensor
• Ribbon encoder sensor
• Ribbon end sensor

LCD:

• Resistive Touch Screen, 16 bits Color, 480 x 272 pixels, with back lights

Real Time Clock:

• Standard

Environment Condition:

• Operation: 5 ~ 40°C, 20 ~ 85% non-condensing
• Storage: -40 ~ 60°C, 5 ~ 90% non-condensing

Safety Regulation:

• FCC Class A, CE Class A, C-Tick Class A, UL, CUL, TÜV/Safety, CB, BIS

Environmental Concern:

• Comply with RoHS, WEEE

Accessories:

• Windows labeling software CD disk
• Quick start guide
• USB cable
• Power cord

Physical Characteristics:

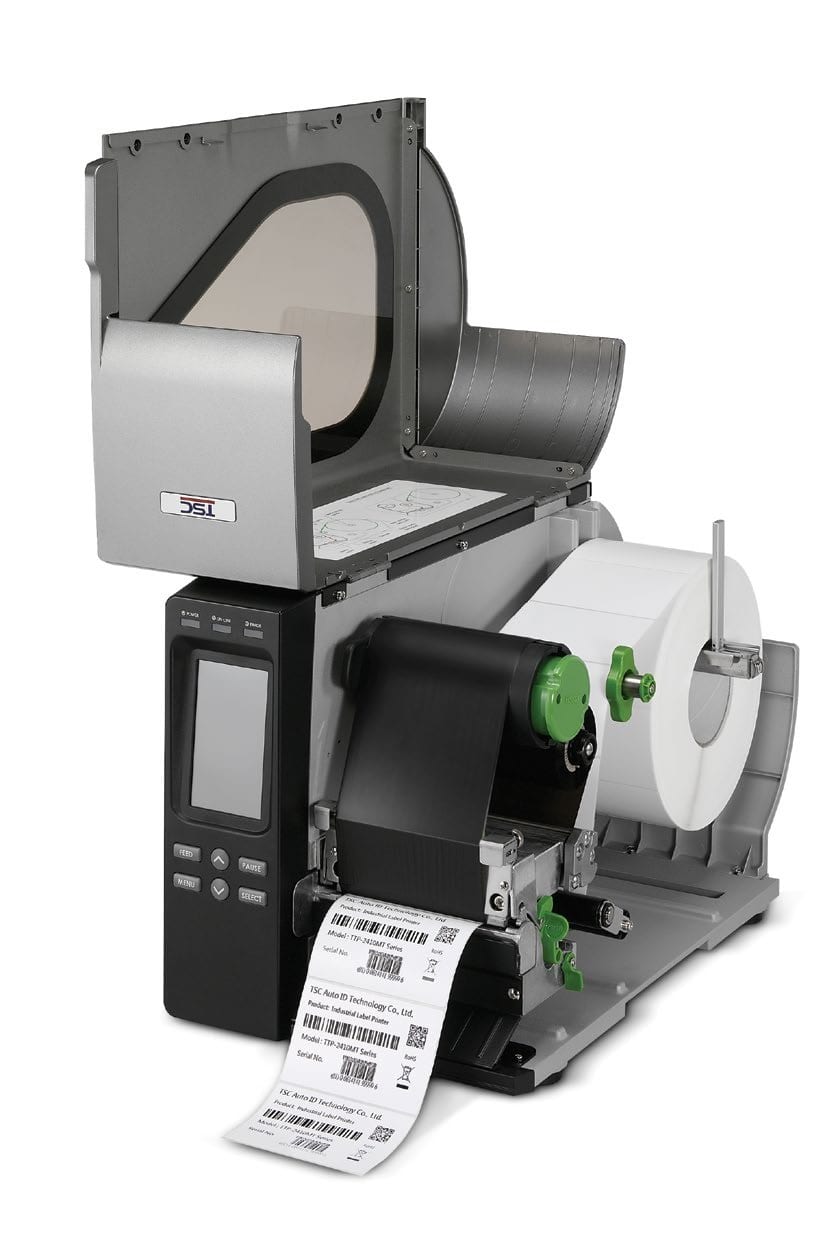

• Enclosure: Die-cast aluminum base and frame/ Metal cover with two hinges & large clear media view window
• Width: 270mm (10.63″)
• Height: 308mm (12.13″)
• Depth: 515mm (20.28″)
• Weight: 15 kg (33.07 lbs)

User Options:

• Bluetooth module (serial interface)
• Regular cutter (full cut guillotine cutter)
• Heavy duty cutter (rotary cutter)
• Care label cutter (rotary cutter)
• High speed cutter
• KP-200 Plus keyboard display unit
• KU-007 Plus programmable smart keyboard

Dealer Options:

• Internal rewinding kit (Max. 6“ OD) Dealer options
• Peel-off kit
• 802.11 a/b/g/n wireless module (slot-in)

Factory Options:

• GPIO interface
• Mainboard with extended memory (512 MB Flash/ 256 MB SDRAM)

• Healthcare
• Retail
• Transportation & Logistics
• Manufacturing
• Government
• Travel & Leisure

Optional Printer Extra’s:

Wifi Module – £246
Internal Rewinder – £154
Guillotine Cutter – £313
KP-200 Standalone Keyboard – £154

Printheads:

203dpi – £308*
300dpi – £354*
600dpi – £596*

*All prices are the manufacturer’s list price excluding VAT. These are subject to change without notice due to exchange rate fluctuations.
Reseller discounts vary by brand. Refer to the latest TPS price list for your current reseller prices. All specifications shown are subject to change without notice.
