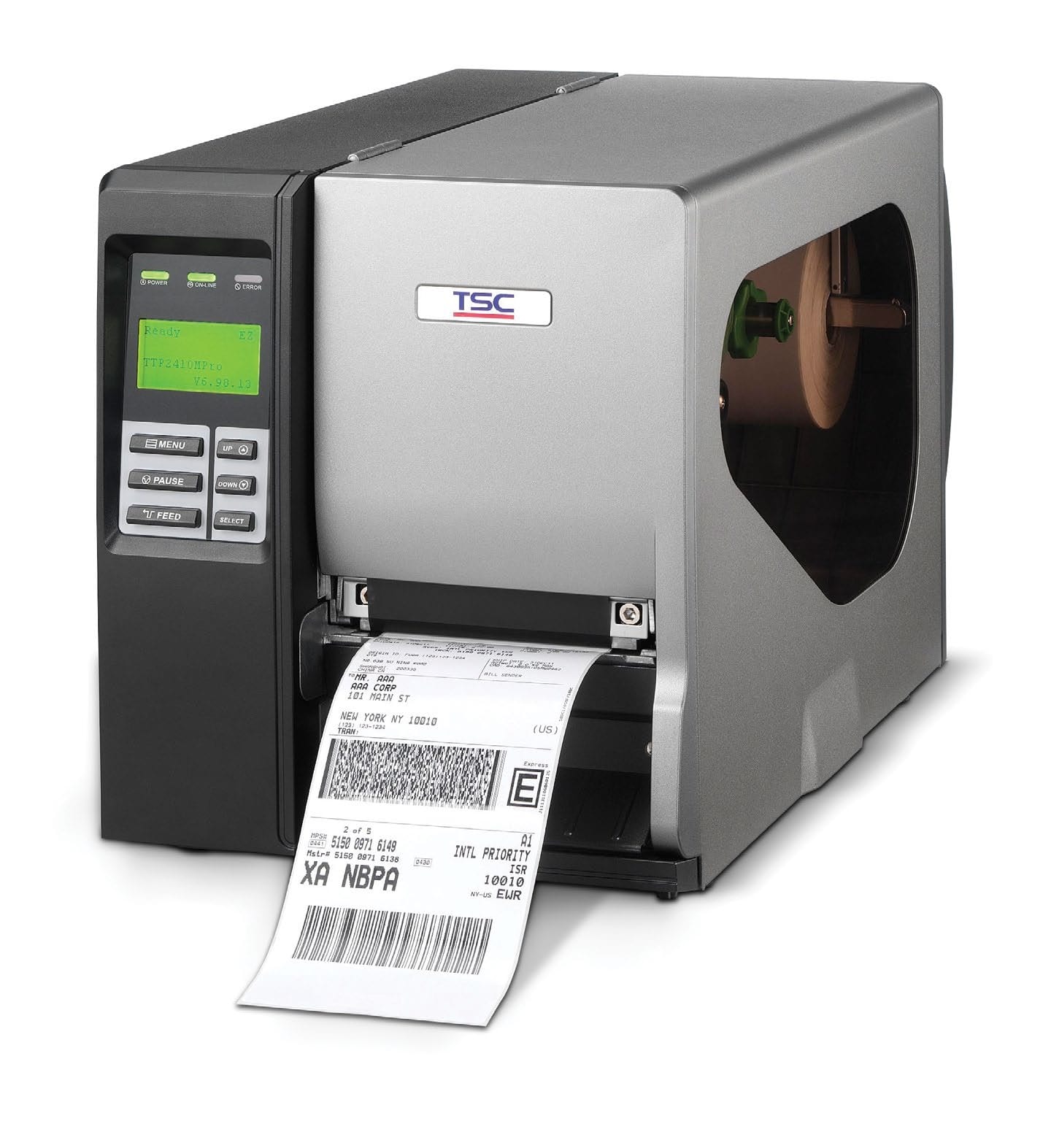

TSC TTP-344M PRO

  • Thermal Transfer / Direct Thermal
    Print Speed: up to 6 inches per second

  • RRP: £1125.46 EX VAT

  • * Please note that the RRP is a guide price only. Discount levels & exchange rates may affect this price.

The TTP-246M Pro Series is based on the proven TTP-246M platform with many significant changes.

  • Overview
  • Specification
  • Applications
  • Additional Extras

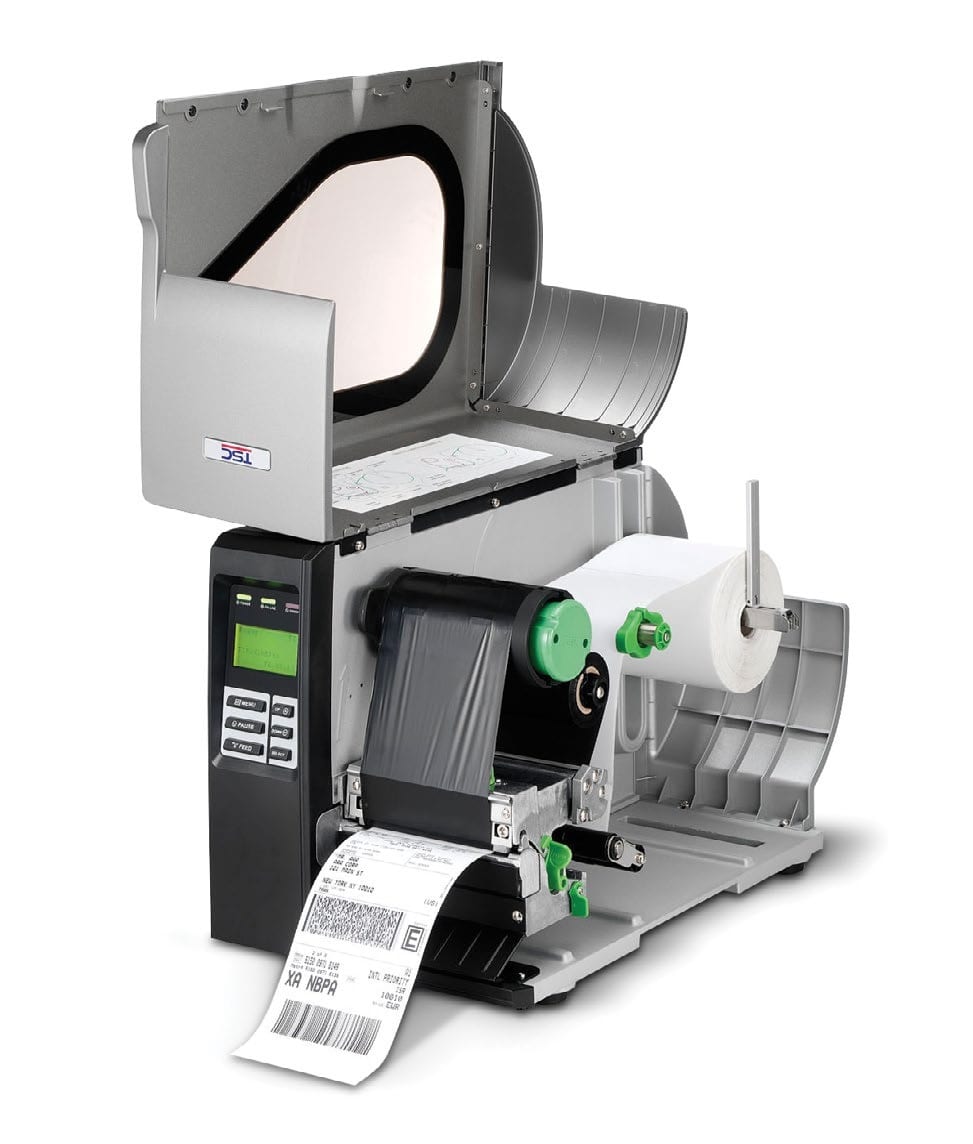

Pro Series enhancements: The new Pro Series features a separate die-cast aluminium base plate and backplane that includes a metal media supply spindle and sturdy two roller damper. Built specifically for the budget–minded, this new design results in a more durable printer that is suited for your most heavy-duty demand cycles.

• Heavy duty die-cast aluminum design

• 600-meter ribbon supply

• Large LCD display with 6-button menus

• USB 2.0, serial and parallel connectivity are standard

• 300dpi resolution

• Up to 152 mm (6”) per sec. print speed

• 32-bit RISC processor

• TSPL-EZ™ firmware for plug-n-play ease

• Powerful basic programming tools

• Options include: Ethernet; USB host for use with keyboards and scanners; peel, present & rewind; cutter

Printer Specifications:

• Print Method: Thermal Transfer & Direct Thermal
• Resolution: 12 dots/mm (300 DPI)
• Max. Print Speed: 152 mm (6”)/second
• Max. Print Width: 104mm (4.09″)
• Max. Print Length: 1,016 mm (40”)
• Processor: 32-bit RISC CPU
• Memory: 4 MB Flash memory / 8 MB SDRAM / SD Flash memory card reader for Flash memory expansion, up to 4 GB (dealer option)
• Sensors:
• Printer Language: TSPL-EZTM (Compatible to EPL, ZPL, ZPL II)

Ribbon Specification:

• 600 m long, max. OD 90 mm, 1” core (ink coated outside or inside)
• Ribbon Width: 25.4 mm ~ 114.3 mm (1” ~ 4.5”)

Label Specification:

• Label Roll Capacity: 208.3 mm (8.2” ) OD
• Label Length: 5 ~ 1,016 mm (0.20” ~ 40”)

Media Specification:
• Media Type: Continuous, die-cut, fan-fold, tag, notched, black mark, perforated, care label (outside wound)
• Media Width: 25.4 ~ 118 mm (1″ ~ 4.6″)
• Media Thickness: 0.06 ~ 0.30 mm (2.36 ~ 11.81 mil)
• Media Core Diameter: 25.4 ~ 76.2 mm (1” ~ 3”)

Internal Fonts:

• 8 alpha-numeric bitmap fonts
• Monotype Imaging® true type font engine with one CG Triumvirate Bold Condensed scalable font

Barcodes:

• 1D barcode: Code 39, Code 93, Code 128UCC, Code 128 subsets A.B.C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST, GS1 DataBar, Logmars
• 2D barcode: PDF-417, Maxicode, DataMatrix, QR code, Aztech

Font and barcode rotation:

• 0, 90, 180, 270 degree

Interface:

• RS-232
• Centronics
• USB 2.0
• USB host, for scanner or PC keyboard (factory option)
• PS/2 keyboard (dealer option)
• Internal Ethernet, 10/100 Mbps (dealer option)
• GPIO (dealer option)
• Bluetooth (user option

LCD:

• Graphic type, 128 x 64 pixel, with back light

Operation Switch, Button:

• 1 power switch, 6 operation buttons (Menu, Pause, Feed, Up, Down, Select) & 3 LEDs

Power:

Internal switching power supply
• Input: AC 100-240V, 3A, 50-60Hz
• Output: DC 24V, 3.3A, 80W

Sensors:

• Gap transmissive sensor (position adjustable)
• Black mark reflective sensor (position adjustable)
• Head open sensor
• Ribbon end sensor

Real Time Clock:

• Standard

Environment Condition:

• Operation: 5 ~ 40°C, 20 ~ 85% non-condensing
• Storage: -40 ~ 60°C, 5 ~ 90% non-condensing

Safety Regulation:

• FCC Class A, CE Class A, C-Tick Class A, UL, CUL, TÜV/Safety, CCC, CB

Environmental Concern:

• Comply with RoHS, WEEE

Accessories:

• Windows labeling software CD disk
• Quick start guide
• USB cable
• Power cord

Physical Characteristics:

• Enclosure: Die-cast aluminum base and frame/Metal cover with large clear media view window
• Width: 270mm (10.63″)
• Height: 308mm (12.13″)
• Depth: 505mm (19.88″)
• Weight: 15 kg (33.07 lbs)

User Options:

• Bluetooth module (serial interface)
• Regular cutter (full cut guillotine cutter)
• Heavy duty cutter (rotary cutter)
• Care label cutter (rotary cutter)
• KP-200 Plus series keyboard
• KU-007 Plus programmable smart keyboard

Dealer Options:

• Internal rewinding kit
• Peel-off kit
Multi-interface board:
• Configuration 1: Internal Ethernet interface (10/100 Mbps) + PS/2 keyboard interface + SD Flash memory card reader
• Configuration 2: USB host + Internal Ethernet interface (10/100 Mbps) + PS/2 keyboard interface + SD Flash memory card reader
• Configuration 3: GPIO interface + USB host + Internal Ethernet interface (10/100 Mbps) + PS/2 keyboard interface + SD Flash memory card reader

Factory Options:

• N/A

Printer Options:

TTP-344M Pro Printer (with USB Host & Ethernet) – £1,317

Optional Printer Extra’s:

Internal Rewinder Module – £154
Guillotine Cutter – £313
Rotary Cutter – £550
KP-200 Standalone Keyboard- £154

Printheads:

203dpi – £196*
300dpi – £254*

*All prices are the manufacturer’s list price excluding VAT. These are subject to change without notice due to exchange rate fluctuations.
Reseller discounts vary by brand. Refer to the latest TPS price list for your current reseller prices. All specifications shown are subject to change without notice.
