TSC TDP-324W

  • Direct Thermal Wristband Printer
    Print Speed: 4 inches per second

  • RRP: £513.59 EX VAT

  • * Please note that the RRP is a guide price only. Discount levels & exchange rates may affect this price.

The Economical High Resolution Wristband Printing Solution

  • Overview
  • Specification
  • Applications
  • Additional Extras

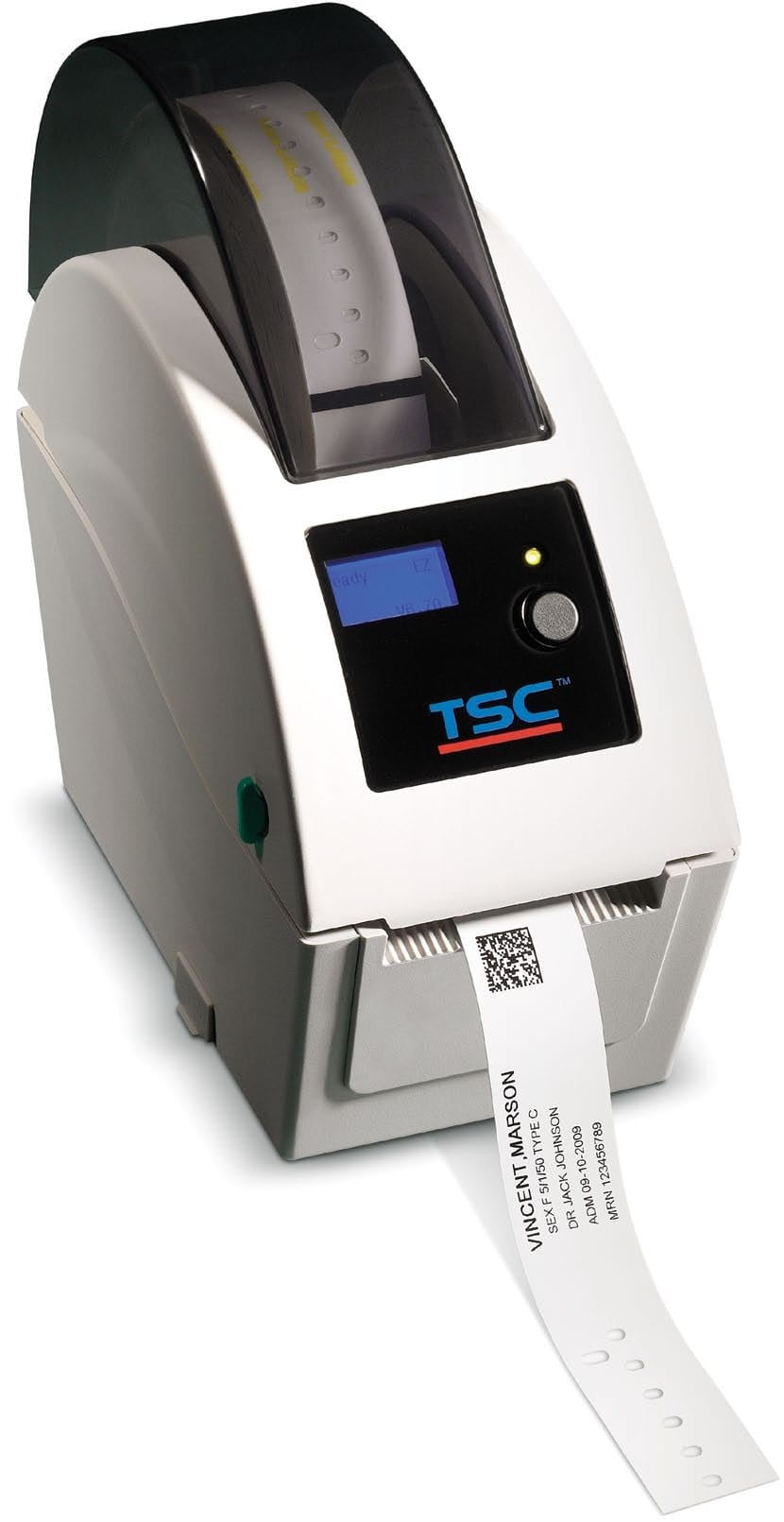

The TDP-324W series wristband label printer is custom-designed for patient ID and entertainment ticketing.

• Designed to hold 6.5″ OD wristbands

• Front LCD display

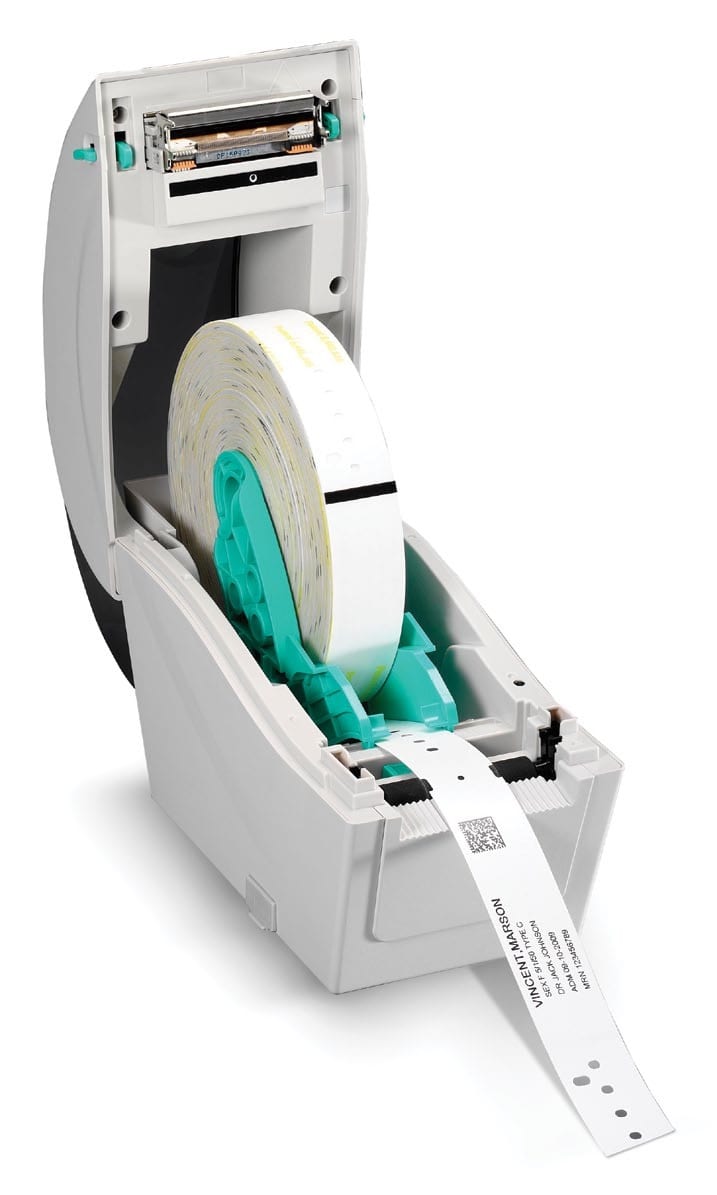

• High quality double-walled clamshell design

• Easy media loading

• Ethernet and USB 2.0 connectivity standard

• Optional down-time keyboard interface

• Across-the-board compatibility with the most popular programming languages

• Real-time clock (an expensive option on other small-footprint units)

• USB host option

• Adjustable sensor

• “Out of the box” language emulation

• Head-up sensor and top-of-form sensing

• Flash card reader for easy font storage

• Cerner Certified and works in any hospital system

• Ethernet and USB 2.0 connectivity

• Optional peel-off module, cutter module and down-time keyboard interface

Printer Specifications:

• Print Method: Direct Thermal
• Resolution: 12 dots/mm (300 DPI)
• Max. Print Speed: 102 mm (4”)/second
• Max. Print Width: 48 mm (1.89“)
• Max. Print Length: 1,016 mm (40“)
• Processor: 32-bit RISC CPU
• Memory: 4 MB Flash memory / 8 MB SDRAM / microSD card reader for Flash memory expansion, up to 4 GB
• Printer Language: TSPL-EZ™
• LCD: Graphic type, 128 x 64 pixels, with back light

Media Specifications:

• Media Type: Continuous, die-cut, black mark, fan-fold, notched, wristband (outside wound)
• Media Width: 15 ~ 52 mm (0.59“ ~ 2.05“)
• Media Thickness: 0.06 ~ 0.19 mm (2.36 ~ 7.48 mil)
• Media Core Diameter: 25.4 mm (1”)

Label Roll Capacity:

• 165 mm (6.5“) OD

Label Length:

• 10 ~ 1,016 mm (0.39” ~ 40”)

Internal Fonts:

• 8 alpha-numeric bitmap fonts
• Monotype Imaging® true type font engine with one CG Triumvirate Bold Condensed scalable font

Barcodes:

• 1D bar code: Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleave 2 of 5, EAN-8, EAN- 13, EAN-128, UPC-A, UPC-E, EAN and UPC 2 (5) digits add-on, MSI, PLESSEY, POSTNET, China POST, GS1 DataBar, Code 11
• 2D bar code: PDF-417, Maxicode, DataMatrix, QR code, Aztec

Font and barcode rotation:

• 0, 90, 180, 270 degree

Interface:

• USB 2.0
• Internal Ethernet, 10/100 Mbps
• USB host, for scanner or PC keyboard (factory option)

Operation Switch, Button:

• 1 power switch, 1 feed button & 1 LED (3 colors: green, amber & red)

Power:

External universal switching power supply
• Input: AC 100-240V, 1A, 47-63Hz
• Output: DC 24V, 2.08A, 50W

Sensors:

• Transmissive gap sensor
• Black mark reflective sensor (position adjustable)
• Head open sensor

Real Time Clock:

• Standard

Environment Condition:

• Operation: 5 ~ 40°C, 25 ~ 85% non-condensing
• Storage: -40 ~ 60°C, 10~ 90% non-condensing

Safety Regulation:

• FCC Class B, CE Class B, C-Tick Class B, UL, CUL, TÜV/Safety, CCC

Environmental Concern:

• Comply with RoHS, WEEE

Accessories:

• Windows labeling software CD disk
• Quick start guide Accessories
• USB cable
• Power cord
• External universal switching power supply

Physical Characteristics:

• Enclosure: Clamshell design with wall mount hole at the bottom cover
• Width: 109mm / 4.29″
• Height: 210mm / 8.27″
• Depth: 260mm / 10.24″
• Weight: 1.2 kg (2.65 lbs)

User Options:

• N/A

Dealer Options:

• Peel-off module
• Guillotine cutter (full cut and partial cut)

Factory Options:

• USB host, for scanner or PC keyboard

Printer Options:

TDP-324W Printer (with USB Host) – £496

Optional Printer Extra’s:

Peel Off Module – £16
Guillotine Cutter – £129

Printheads:

203dpi – £79*
300dpi – £125*

*All prices are the manufacturer’s list price excluding VAT. These are subject to change without notice due to exchange rate fluctuations.
Reseller discounts vary by brand. Refer to the latest TPS price list for your current reseller prices. All specifications shown are subject to change without notice.
