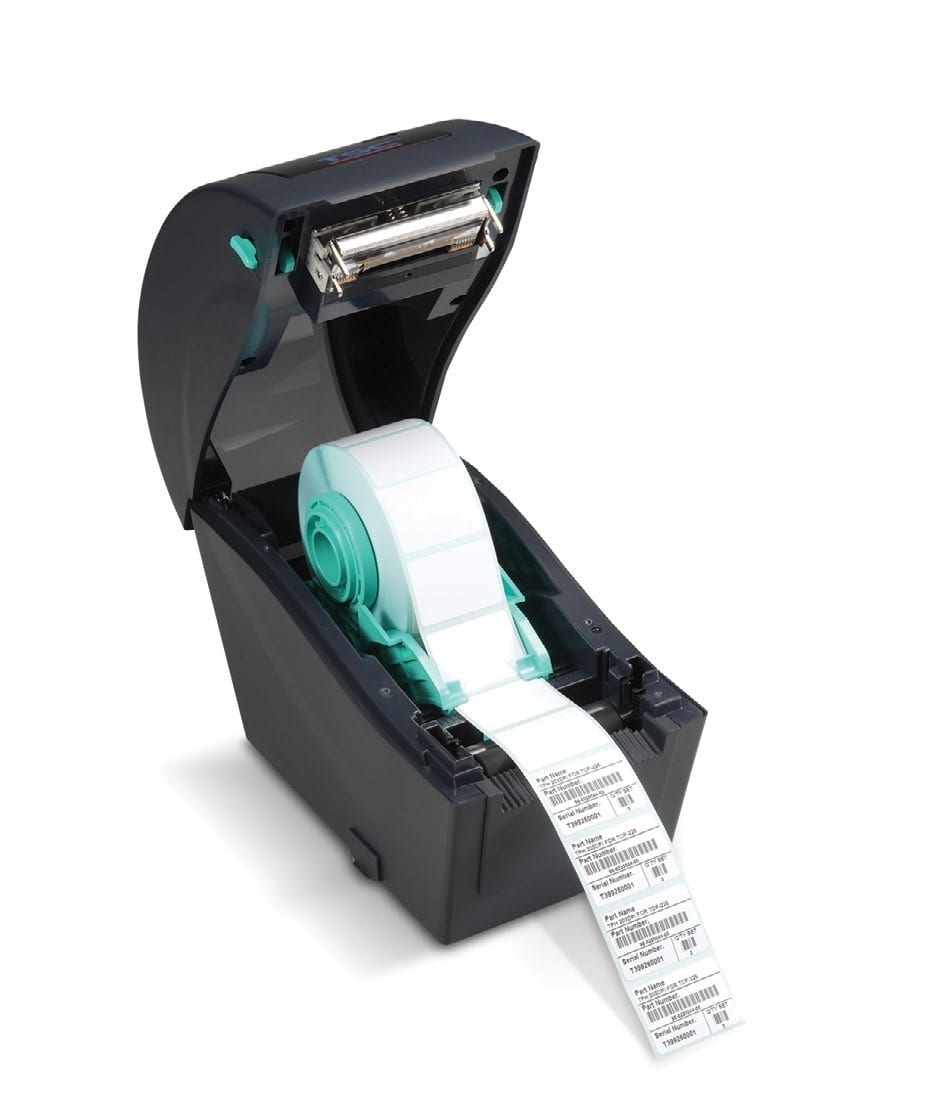

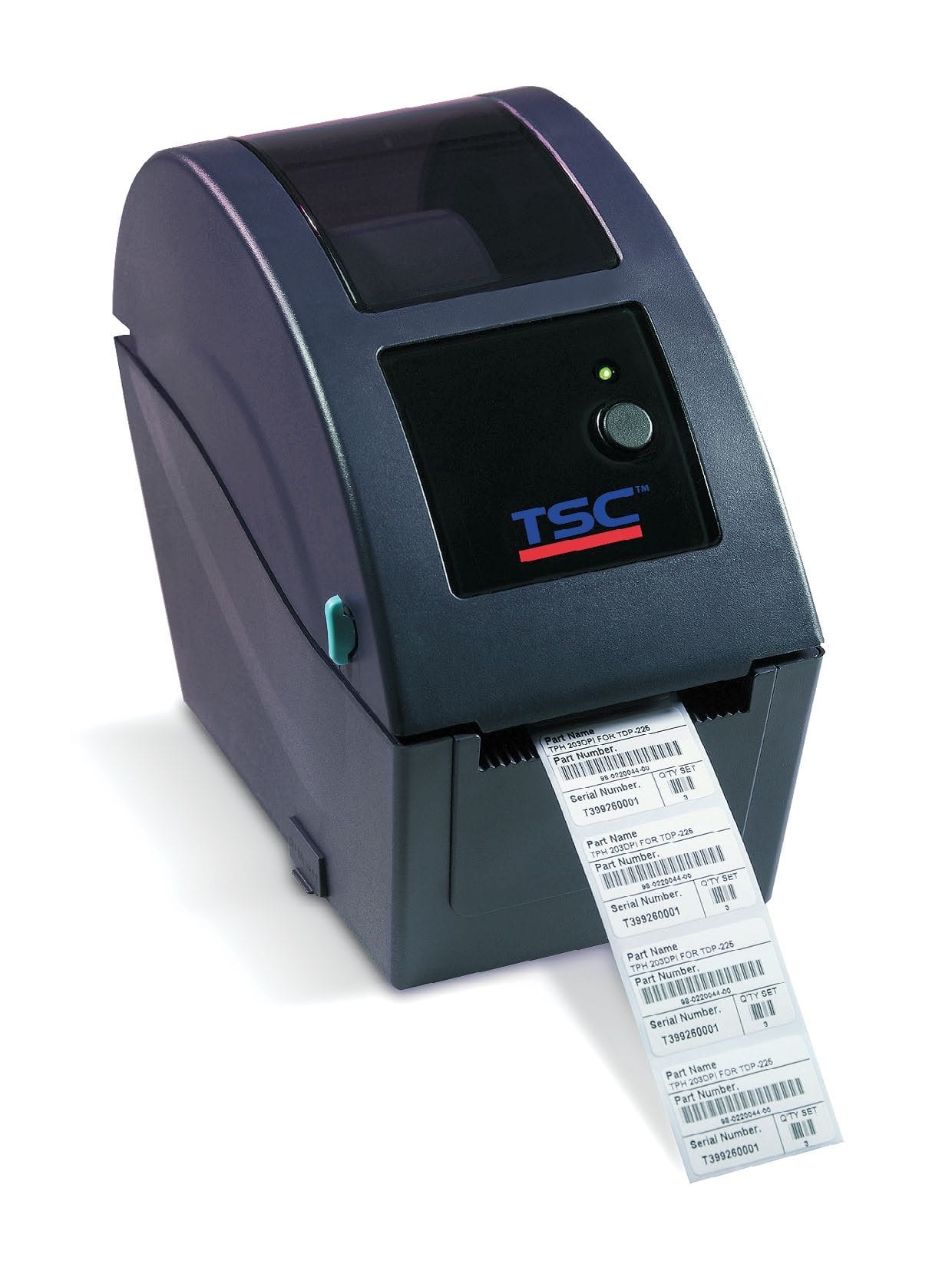

TSC TDP-324

Printer Specifications:

• Print Method: Direct Thermal
• Resolution: 12 dots/mm (300 DPI)
• Max. Print Speed: 102 mm (4”)/second
• Max. Print Width: 48 mm (1.89“)
• Max. Print Length: 1,016 mm (40“)
• Processor: 32-bit RISC CPU
• Memory: 4 MB Flash memory / 8 MB SDRAM / microSD card reader for Flash memory expansion, up to 4 GB
• Sensors: Transmissive gap sensor / Black mark reflective sensor (position adjustable) / Head open sensor
• Printer Language: TSPL-EZ™

Media Specifications:

• Media Type: Continuous, die-cut, black mark, fan-fold, notched, wristband (outside wound)
• Media Width: 15 ~ 60 mm (0.59“ ~ 2.36“)
• Media Thickness: 0.06 ~ 0.19 mm (2.36 ~ 7.48 mil)
• Media Core Diameter: 25.4 ~ 38 mm (1” ~ 1.5”)

Label Roll Capacity:

• 127 mm (5“) OD

Label Length:

• 10 ~ 1,016 mm (0.39“ ~ 40“)

Internal Fonts:

• 8 alpha-numeric bitmap fonts
• Monotype Imaging® true type font engine with one CG Triumvirate Bold Condensed scalable font

Barcodes:

• 1D bar code: Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleave 2 of 5, EAN-8,
EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2 (5) digits add-on, MSI, PLESSEY, POSTNET,
China POST, GS1 DataBar, Code 11
• 2D bar code: PDF-417, Maxicode, DataMatrix, QR code, Aztec

Font and barcode rotation:

• 0, 90, 180, 270 degree

Interface:

• RS-232
• USB 2.0
• Internal Ethernet, 10/100 Mbps (dealer option)
• Bluetooth (user option)
• External 802.11 b/g/n wireless (user option)

Operation Switch, Button:

• 1 power switch, 1 feed button & 1 LED (3 colors: green, amber & red)

Power:

External universal switching power supply
• Input: AC 100-240V, 1A, 47-63Hz
• Output: DC 24V, 2.08A, 50W

Sensors:

• Transmissive gap sensor
• Black mark reflective sensor (position adjustable)
• Head open sensor

Real Time Clock:

• Standard

Environment Condition:

• Operation: 5 ~ 40°C, 25 ~ 85% non-condensing
• Storage: -40 ~ 60°C, 10~ 90% non-condensing

Safety Regulation:

• FCC Class B, CE Class B, C-Tick Class B, UL, CUL, TÜV/Safety, CCC, ENERGY STAR®

Environmental Concern:

• Comply with RoHS, WEEE

Accessories:

• Windows labeling software CD disk
• Quick start guide
• USB cable
• Power cord
• External universal switching power supply

Physical Characteristics:

• Enclosure: Clamshell design with wall mount hole at the bottom cover
• Width: 109mm / 4.29″
• Height: 171mm / 6.73″
• Depth: 209mm / 8.23″
• Weight: 1.2 kg (2.65 lbs)

User Options:

• Bluetooth module (serial interface)
• 802.11 b/g/n wireless module (serial interface)
• KP-200 Plus keyboard display unit
• KU-007 Plus programmable smart keyboard

Dealer Options:

• Internal Ethernet interface (10/100 Mbps)
• Peel-off module
• Guillotine cutter (full cut and partial cut)

Factory Options:

• 128 x 64 pixels graphic type LCD display with back light

• Healthcare
• Retail
• Manufacturing
• Transportation & Logistics
• Government
• Travel & Leisure

Printer Options:

TDP-324 Printer (with Ethernet & LCD) – £408

Optional Printer Extra’s:

Peel off module – £16
Guillotine Cutter – £129
KP-200 Standalone Keyboard – £154

Printheads:

203dpi – £79*
300dpi – £125*

*All prices are the manufacturer’s list price excluding VAT. These are subject to change without notice due to exchange rate fluctuations.
Reseller discounts vary by brand. Refer to the latest TPS price list for your current reseller prices. All specifications shown are subject to change without notice.
