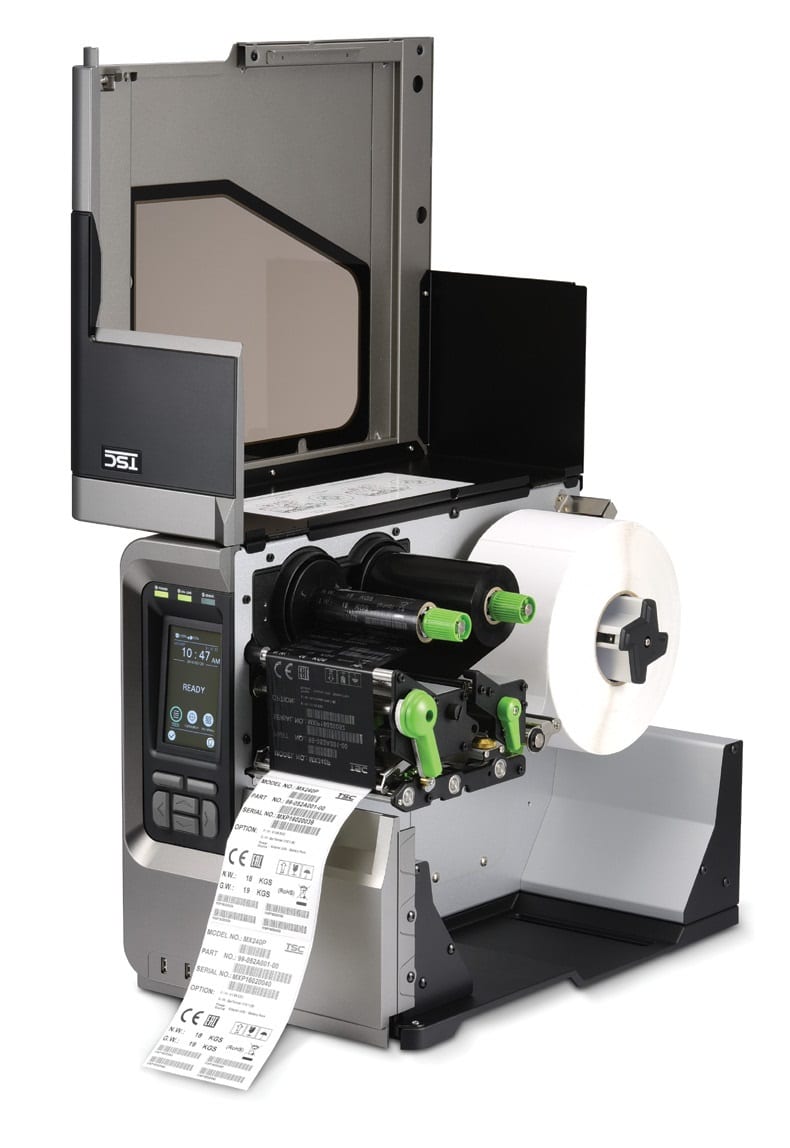

TSC MX240P

Printer Specifications:

• Print Method: Thermal Transfer & Direct Thermal
• Resolution: 8 dots/mm (203 DPI)
• Max. Print Speed: 457 mm (18”)/second
• Max. Print Width: 104 mm (4.09”)
• Max. Print Length: 25,400 mm (1,000”)
• Processor: 32-bit RISC CPU
• Memory: 512 MB Flash memory Memory / 512 MB SDRAM / microSD Flash memory card reader for Flash memory expansion, up to 32 GB
• Printer Language: TSPL-EZTM (Compatible to EPL, ZPL, ZPL II)

Media Specifications:

• Media Type: Continuous, die-cut, black mark, fan-fold, notched (outside wound)
• Media Width: 20 ~ 114 mm (0.78“ ~ 4.49“)
• Media Thickness: 0.076 ~ 0.305 mm (2.99 ~ 12.01 mil)
• Media Core Diameter: 76.2 mm (3”)

Label Specification:

• Label Roll Capacity: 203.2 mm (8“) OD
• Label Length: 3 ~ 25,400 mm (0.1“ ~ 1,000“)

Ribbon Specification:

• Ribbon: 600 meter long, max. OD 90 mm,1“ core (ink coated outside/inside)
• Ribbon Width: 40 ~ 115 mm

Internal Fonts:

• 8 alpha-numeric bitmap fonts
• Monotype Imaging® true type font engine with one CG Triumvirate Bold Condensed scalable font

Barcodes:

• 1D barcode: Code 39, Code 93, Code128UCC, Code128 subsets A.B.C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A,
UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, RSS-Stacked, GS1 DataBar, Code 11, China Post
• 2D barcode: PDF-417, Maxicode, DataMatrix, QR code, Aztec

Font and barcode rotation:

• 0, 90, 180, 270 degree

Interface:

• RS-232
• USB 2.0
• Internal Ethernet, 10/100 Mbps
• USB host * 2 (front side), for scanner or PC keyboard
• GPIO + Centronics (dealer option)
• Internal Bluetooth 4.0 (dealer option)
• Slot-in 802.11 a/b/g/n wireless (user option)

Operation Switch, Button:

• 1 power switch, 6 operation buttons (Menu, Pause, Feed, Up, Down, Select)

Power:

Internal universal switching power supply
• Input: AC 100-240V, 4-2A, 50-60Hz
• Output: DC 5V, 5A; DC 24V, 7A; DC 36V, 1.4A; Total 243W

LCD:

• 16 bits Color, 480 x 272 pixel, with back light, Resistive Touch Screen

Sensors:

• Gap transmissive sensor (position adjustable)
• Black mark reflective sensor (position adjustable)
• Head open sensor
• Ribbon end sensor
• Ribbon encode sensor
• Media capacity sensor

Real Time Clock:

• Standard

Environment Condition:

• Operation: 5 ~ 40°C, 25 ~ 85% non-condensing
• Storage: -40 ~ 60°C, 10 ~ 90% non-condensing

Safety Regulation:

• FCC Class B, CE Class B, C-Tick Class B, UL, cUL, TÜV/safety, CCC, CB, BIS, EAC, ENERGY STAR®

Environmental Concern:

• Comply with RoHS, WEEE

Accessories:

• Windows labeling software CD disk
• Quick start guide
• USB cable
• Power cord

Physical Characteristics:

• Enclosure: Die-cast based print mechanism and frame/Aluminum cover with large clear media view window
• Width: 300mm (11.81″)
• Height: 393mm (15.47″)
• Depth: 510mm (20.08″)
• Weight: 18 kg (39.68 lbs)

User Options:

• 802.11 a/b/g/n wireless module (slot-in) User options
• KP-200 Plus series keyboard
• KU-007 Plus programmable smart keyboard

Dealer Options:

• GPIO + Parallel interface
• Internal Bluetooth 4.0
• Peel-off kit
• Regular cutter (full cut guillotine cutter)
• Heavy duty guillotine cutter

Factory Options:

• Internal rewinding kit (full roll)

• Healthcare
• Retail
• Transportation & Logistics
• Manufacturing
• Government
• Travel & Leisure

Optional Printer Extra’s:

Wifi Module – £246
Peel-off Module- £208
Guillotine Cutter – £321
KP-200 Standealone Keyboard – £154

Printheads:

203dpi – £396*
300dpi – £500*
600dpi – £700*

*All prices are the manufacturer’s list price excluding VAT. These are subject to change without notice due to exchange rate fluctuations.
Reseller discounts vary by brand. Refer to the latest TPS price list for your current reseller prices. All specifications shown are subject to change without notice.
