SATO CL424NX

  • Thermal Transfer / Direct Thermal
    Print Speed: up to 6 inches per second

  • RRP: £2655.00 EX VAT

  • * Please note that the RRP is a guide price only. Discount levels & exchange rates may affect this price.
  • Sato CLNX Series - Introduction

  • Sato CLNX Series - How to replace the ribbon

  • Sato CLNX Series - How to clean the printer

Optimize asset management, increase supply visibility, and expand operational ability with SATO’s next generation printing solution.

  • Overview
  • Specification
  • Applications
  • Additional Extras

The NX Series represents SATO’s next generation of thermal printers with advanced support for barcode symbologies, character sets and RFID encoding. A product of SATO’s global R&D network the NX Series incorporates value-added features in a world-class design to deliver a printing solution that goes beyond expectations.

• Durable Design

• Support a Variety of Media Types

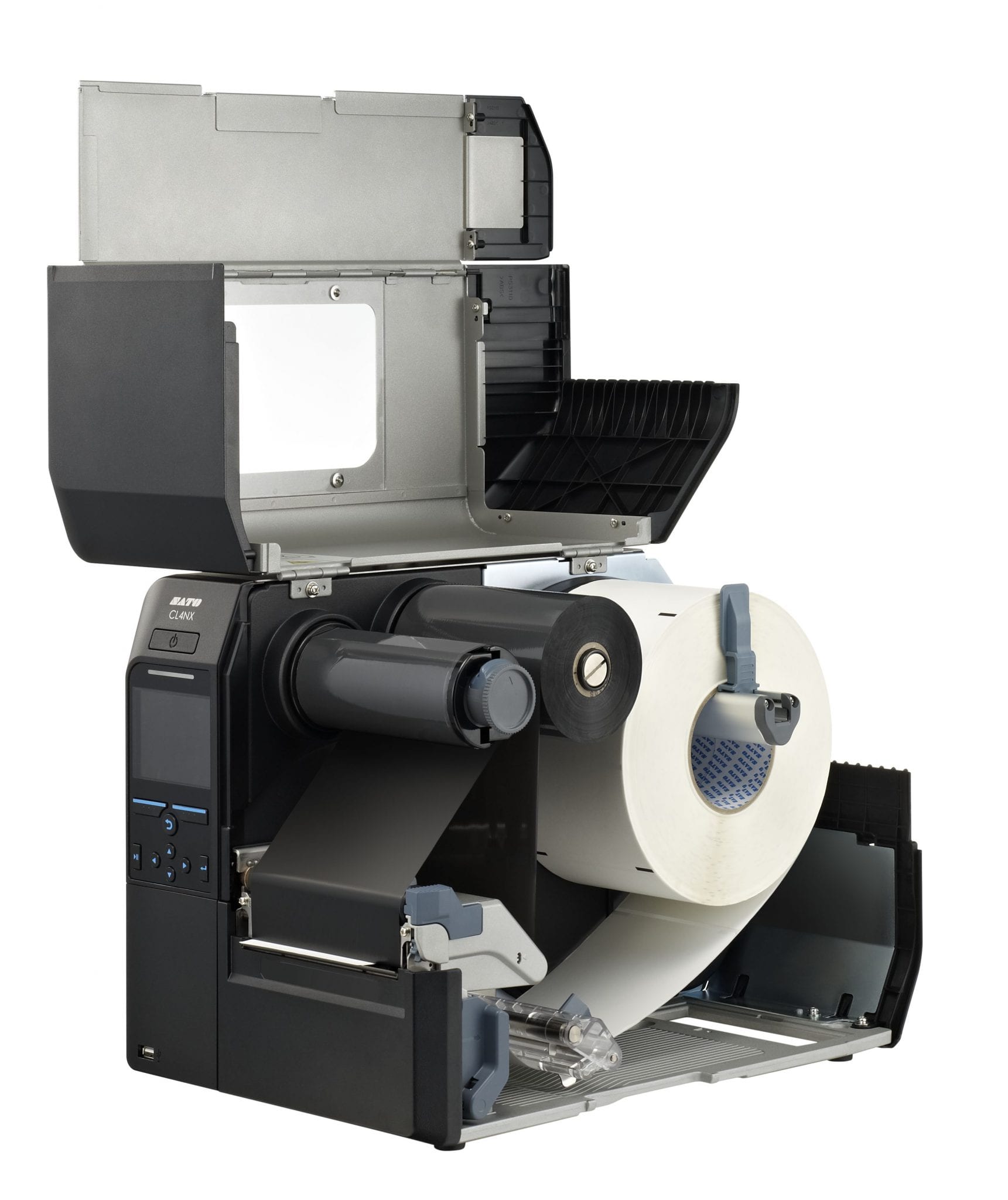

• Space Saving Design -Bi-fold Type Side Cover

• Superior Print Accuracy and Quality

• LTDS (Label Tension Damper System)

• Multiple On-board Interfaces Standards

• Standard Emulations Onboard

• Multi-National Language Support

• User Friendly Operation

• Full Color Interactive LCD Display

• Easy Set-up and Maintenance

• High Speed Processing and Throughput

Printer Specifications:

• Print Method: Thermal Transfer/Direct Thermal
• Resolution: 24 dots / mm (609 dpi)
• Max. Print Speed: 6ips (152 mm/sec)
• Max. Print Width: 104mm(4.1”)
• Max. Print Length: 400mm(15.7”)
• Processor: Dual CPU & Dual OS: CPU 1: 2GB ROM, 256MB RAM for Linux OS, CPU 2: 4MB ROM, 64 MB RAM for ITRON OS
• Memory: 2GB ROM, 256MB RAM
• Sensors: I-Mark Sensor (Reflective), Label Gap Sensor (Transmissive)

Media Specification:

• Media Type: Roll or fan-fold die cut labels, Plain paper face stock, Synthetics and Continuous stock
• Media Thickness: 0.06 – 0.26mm (0.002” to 0.01”)
• Diameter: Maximum 220mm (8.6”) on 76mm (3”) internal core diameter Core diameter: Ø 76mm (3.0”), Ø 101mm (4.0”)
• Wind Direction: Face In / Face Out. No Setting Change Required

Label Specification:

• Continuous: Width: 22 to 128mm (0.87” to 5.0”)
• Continuous: Length: 6 to 397mm (0.24” to 15.6”)
• Tear-Off: Width: 22 to 128mm (0.87” to 5.0”)
• Tear-Off: Length: 17 to 397mm (0.24” to 15.6”)
• Cutter: Width: 22 to 128mm (0.87” to 5.0”)
• Cutter: Length: 17 to 397mm (0.24” to 15.6”)
• Dispenser: Width: 22 to 128mm (0.87” to 5.0”)
• Dispenser: Length: 27 to 397mm (0.67” to 15.6”)
• Linerless: Width: 32 to 128mm (1.3” to 5.0”)
• Linerless: Length: 30 to 120mm (1.2” to 4.9”)

Ribbon Specification:

• Size: Max. Length: 600m(1969’) Max. Length will be 450m (1476’) when ribbon width is 39.5mm.
Max. Roll Diameter: 90mm(3.5”), Ribbon width : 39.5mm(1.55”) to 128mm(5.04”)
• Other: Core diameter: Ø 25.4mm (1”), Wind direction : Face In/ Face Out, No Setting Change Required

Internal Fonts:

• Standard Bitmap: U, S, M, WB, WL, XS, XU, XM, XB, XL, OCR-A, OCR-B
• TTF Fonts: CG Times, CG Triumvirate, Sato Gamma (Bold, Italic, Bold Italic), Sato Vica (Bold, Italic, Bold Italic), Sato Folio Bold, Sato Vica Light Condensed, Sato Alpha Bold Condensed, Sato 0 Bold Condensed, Sato Futura Medium Condensed, Sato OCR-B, Sato Symbol Set, Sato Wingbats, Sato Sans(Bold), Sato Serif(Bold), HGMLAG, Sato Beta Bold Italic, Helvetica, Universal, Universal Condensed Bold, AR Hebe Sans, AR SilverS erif, AR Hebe Sans Farsi, Other Asian True Type fonts, Optional Downloaded TrueType fonts, scalable from 8 to 72 points
• Encoding: UPC-A/E, JAN/EAN-8/13, Code 39, Code 128, GS1-128 (UCC /EAN128), Codabar (NW–7), Industrial 2 of 5, Bookland

Barcodes:

• Linear: Code 39, Code 93, Code 128, CODABAR (NW7), EAN8/13, GS1-DatabarTM, GS1-128(UCC/EAN128), Interleaved 2/5, Industrial 2/5, JAN8/13, Matrix 2/5, MS1, Bookland, PostnetTM, UPC-A/E
• 2D Symbologies: PDF417, Micro PDF, Maxi Code, GS1 Data Matrix, QR Code, Micro QR Code and Composite Symbologies

Print Direction:

• Barcode rotation: 0º, 90º, 180º, 270º

User Downloadable Fonts, Graphics or Formats:

• Maximum 100MB

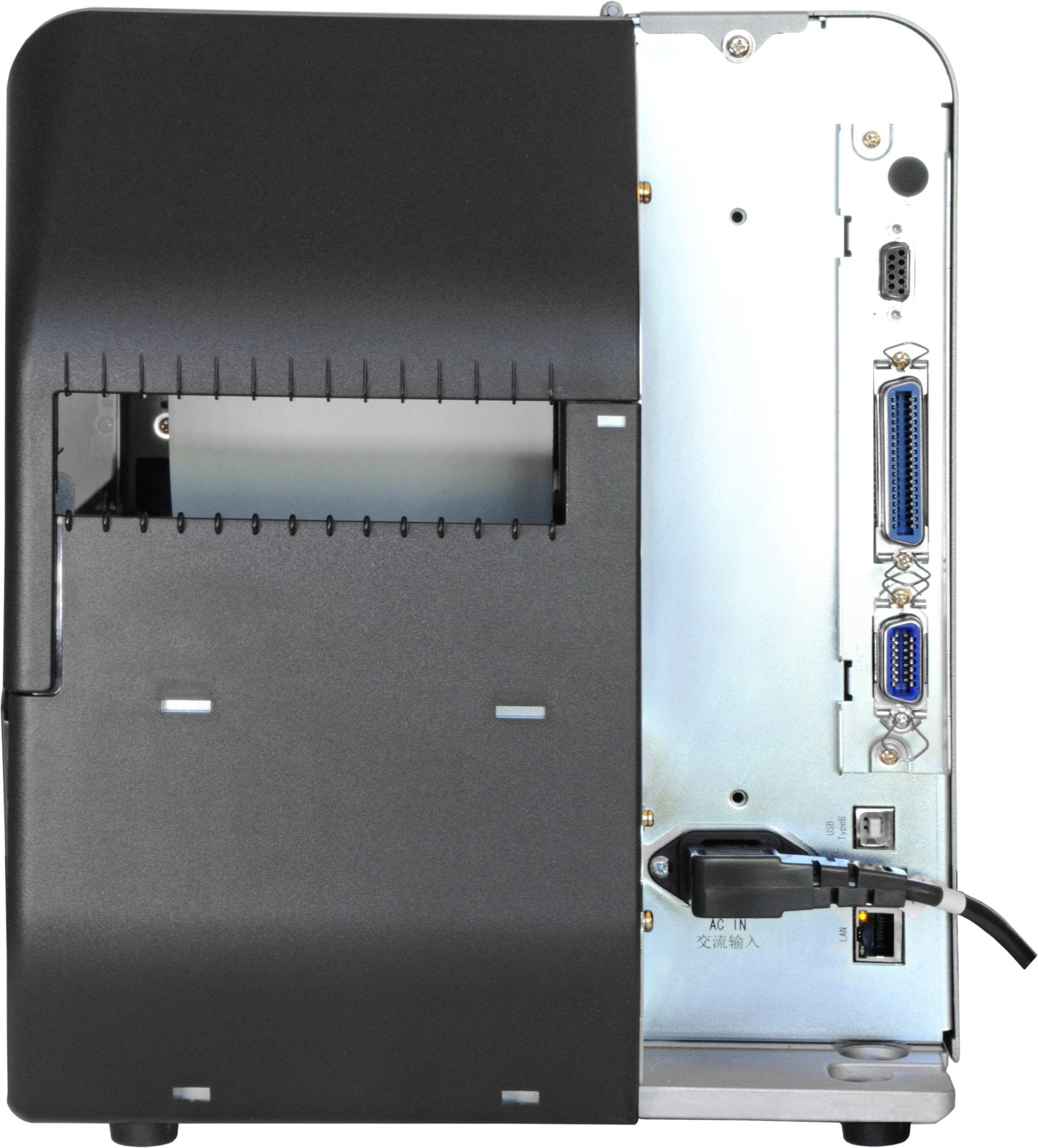

Interfaces:

• RS232: RS232C Standard (XON/XOFF, RTS/CTS)
• IEEE1284
• USB: USB Device type B connector 2.0 High Speed, USB Device type A (2 ports)
• LAN: Ethernet 10/100 Mbps / DHCP(ipv4 / ipv6), TCP/IP
• Bluetooth: Version 3.0 + EDR Class 2
• EXT: Amphenol D-Sub14pin female

Optional Interface:

• Wireless LAN (WiFi and CCX Certified), IEEE 802.11a/b/g/n, Dual band (2.4GHz, 5GHz)

Remote Maintenace:

• SNMP Ver. 3, HTTPs

Supported printer protocols:

• Standard: SBPL (SATO Barcode Printer Language) Emulation Language: Auto detect – SZPL, SDPL,SIPL or STCL

Power Requirements:

• AC100V~AC240V±10%, 50/60 Hz, Auto-ranging Power Supply, Energy Star – Compliant,

Environment Condition:

• Operating: 0 – 40 ºC / 30 – 80 % RH (without condensation)
• Storage: -20 – 60 ºC / 30 – 90 % RH (without condensation)

Display Panel:

• TFT Full Color LCD, 3.5″(320 (RGB) *240)

Physical Characteristics:

• Dimensions: 271mm (10.6”) x 457mm (17.9”) x 321mm (12.6”)
• Weight: 15Kg (33 lbs)

Certifications:

• CE, UL, TUV, cMETus (USA/Canada), CCC(China), KC (Korea), C-Tick (New Zealand/Australia), S-Mark (Argentina), ROHS compliant

Regulatory Approvals:

• Noise: Emission –EN55022 Class A, EN55024

Functions – Useful features:

• Guidance Video on LCD, Multi Language support LCD message (30 Languages), Energy Saving, Large Status LED,
Multiple Interfaces-Auto-switching, USB Memory for data copy, Status return, Alarm Sound

Functions – Self Diagnosis Checking:

• Thermal head check, Paper end detection, Ribbon end detection, Test print, Head Lift detection

Accessories:

• Cutter, Dispenser with Internal Backing Paper Rewinder, Linerless kit, Real-Time Clock, UHF RFID, SATO Label Gallery™

UHF:

• Standard: ISO18000-6 Type C
• Frequency: 868 – 920MHz
• Protocols: EPC Gen 2 Class 1, NXP, Impinj, Alien
• RFID Features: Fully integrated UHF RFID Reader / Encoder Module, RFID calibration function for optimal transponder performance,
Void marking of damaged or unreadable transponders, RFID data verification after programming, Multiple RFID power
settings allow users to use individual Transponder sizes, DIP (Direct Inlay Printing) allows to use short pitch labels down
to 4 mm, PWP function allows flexible inlay positions, TID reading and printing as text and barcode
• Gen2 Memory: Expanded EPC (496bit), User Memory (512bit), TID (96bit), Access password, Kill password, Lock

Optional Printer Extra’s:

Wifi Module – £247
RFID Kit – £1,250
Dispenser Kit – £375
Cutter Kit – £375
Real Time Clock Kit – £70

Printheads:

203dpi – £401*
300dpi – £481*
600dpi – £1,069*

*All prices are the manufacturer’s list price excluding VAT. These are subject to change without notice due to exchange rate fluctuations.
Reseller discounts vary by brand. Refer to the latest TPS price list for your current reseller prices. All specifications shown are subject to change without notice.
